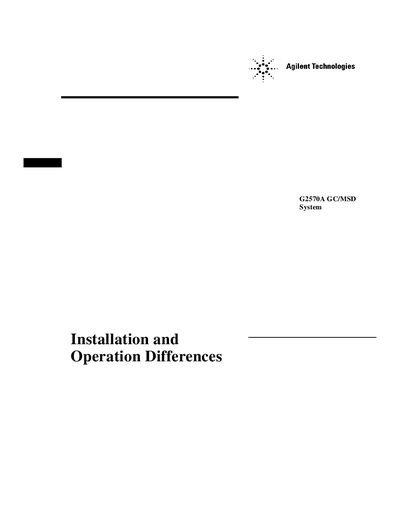

This file introduces the installation and operation methods of the G2570A GC/MSD system produced by Agilent Technologies
The document describes specific changes made to the sub-systems that constitute the G2570A GC/MSD System. Key modifications include a relocated power switch on the MSD-Ready 6850A Gas Chromatograph, a pre-drilled hole for the interface heater, and firmware updates in the Control Module to recognize the Mass Selective Detector as the only supported device.
The guide provides step-by-step instructions for hardware installation, including installing GC columns, reconfiguring column outlets and inlets, connecting the MSD, and installing ChemStation software. It also covers operational procedures such as venting/pumping down the MSD, creating methods, and performing manual or automatic injections.
| System Components | MSD-Ready 6850A GC, G2629A Control Module, G2577A Diffusion Pump MSD |
|---|---|
| Software Version | G1701CA MSD Productivity software |
| Power Switch Location | Right side in the lower front corner |
The publication number for this manual is G2589-90008.
No, the use of a JetDirect card is not supported.
It communicates only via the APG Start/Stop remote cable (Part No. G1530-60930).
