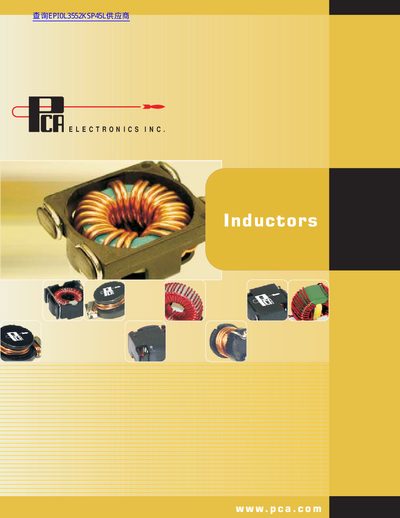

This document introduces the inductor product series of PCA Electronics Inc., including the features and characteristics of the EPI0L3552KSP45L model.
This document from PCA Electronics Inc. details their Surface Mount Power Inductor Series, including models like EPI-B20, EPI-B30, and EPI-BH30. Each inductor is optimized for high-frequency switching converters such as Buck, Boost, or filter applications. Specifications include inductance, DCR, current ratings, and core loss at various frequencies. The document also includes application notes and schematic diagrams for specific models.
| Inductance | 1.05 - 248 µH |
|---|---|
| Switching Frequency | 150 KHz & 500 KHz |
| Core Loss | 15mW - 25mW |
The EPI-B30 Series is designed for 150 KHz & 500 KHz switching frequency.
The EPI-BH30 Series has an inductance range of 5 - 167 µH.
The core loss for the EPI-BH30 Series is 15mW.
