500 mW DC/DC Converter is a non-regulated DC/DC converter produced by PCA ELECTRONICS, INC., which features high efficiency, wide operating temperature range, high input/output isolation voltage, and UL94V-0 recognized materials.

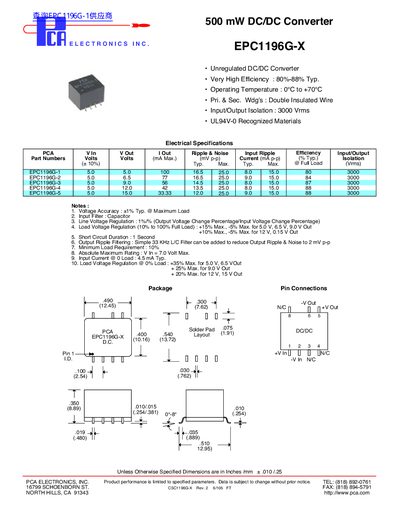

The document describes the PCA Electronics EPC1196G-X family of 500 mW unregulated DC/DC converters. These devices offer very high efficiency ranging from 80% to 88% typical and operate within a temperature range of 0°C to +70°C.
The datasheet provides detailed electrical specifications for various output voltage options (1V through 15V), including input/output isolation ratings, ripple and noise levels, and load regulation. It also includes package pin connection diagrams and notes on absolute maximum ratings.
| Power Output | 500 mW |
|---|---|
| Efficiency | 80%-88% Typ. |
| Operating Temperature | 0°C to +70°C |
| Input/Output Isolation | 3000 Vrms |
The typical efficiency ranges from 80% to 88%.
The absolute maximum rating for V In is 7.0 Volts.
