Raltron Electronics Corporation produces RCFA1-836BP2, RCFA1-881BP2, RCFA1-841BP2, RCFA1-866BP2, RCFA1-948BP2, RCFA1-902BP2, RCFA1-947BP2, RCFA1-915BP2, RCFA1-1575BP2, RCFA1-1890BP2 and other products. These products have wide bandwidth, high Q value, low insertion loss, good temperature stability and attenuation, and are widely used in satellite receivers, global positioning systems, wireless local area network equipment, mobile phones and cordless phones.

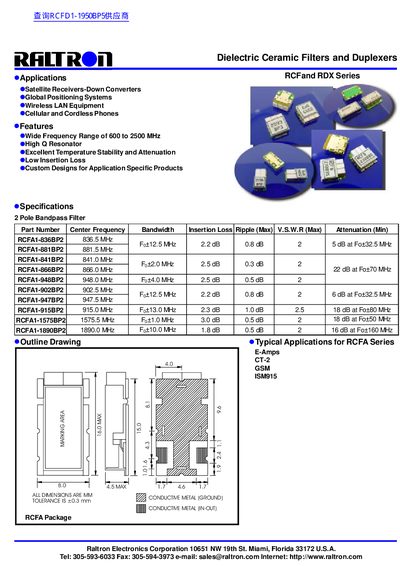

This document details Raltron's RCF and RDX series dielectric ceramic filters and duplexers, designed for applications such as satellite receivers, GPS systems, cellular phones, and wireless LAN equipment. The product line includes various pole bandpass filters with specified center frequencies, bandwidths, insertion loss, ripple, V.S.W.R., and attenuation values. Each filter type is presented with its technical specifications and outline drawings for mounting and integration. The document also includes application notes for specific use cases like GSM, ISM915, and IMT-2000.
The filters are available in different package types (RCFA, RCFB, RCFC, RCFD, RCFE, RCFF, RDXA) with dimensional tolerances and marking areas specified. The document provides detailed specifications for each part number, including frequency ranges from 600 MHz to 2800 MHz, and includes typical applications for each series.
| Frequency Range | 600 to 2500 MHz |
|---|
Used in satellite receivers, GPS systems, cellular and cordless phones, and wireless LAN equipment.
The frequency range is 600 to 2500 MHz.
