The VCXO is a voltage controlled oscillator that conforms to HCMOS standards. It is a high frequency, highly stable crystal controlled oscillator with a three-state output for facilitating testing or combining multiple clocks. The device is contained in a sub-miniature, very low profile, leadless ceramic SMD package with 6 gold contact pads. This miniature oscillator is ideal for today's automated assembly environments.
The VS9P series is a low‑cost voltage‑controlled crystal oscillator (VCXO) that uses LVPECL signaling and operates from 0.75 MHz to 800 MHz. It is suited for high‑frequency applications such as InfiniBand, Fiber Channel, SATA, 10 GbE, network processors, and SOHO routing.

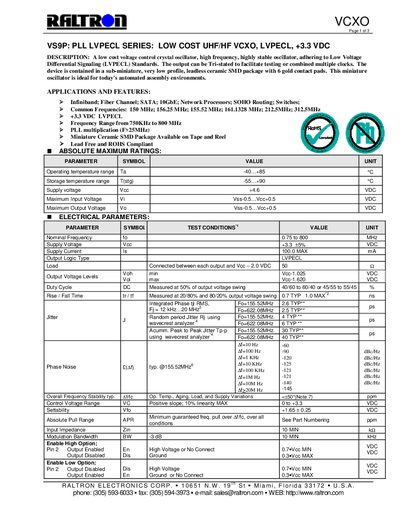

The datasheet lists the device's electrical characteristics, including supply voltage, output logic type, duty‑cycle range, and phase‑noise performance, as well as mechanical details like package dimensions and pin assignments. It also provides part‑numbering information and recommended reflow soldering profiles.
| Operating temperature range | -40 °C to +485 °C |
|---|---|
| Supply voltage (Vcc) | +4.6 VDC |
| Nominal frequency range | 0.75 MHz to 800 MHz |
| Output logic type | LVPECL |
The VS9P VCXO operates from 0.75 MHz up to 800 MHz.
It requires a nominal supply voltage of +4.6 VDC.
Pin 1 is voltage control, Pin 2 enables/disables or is no‑connect, Pin 3 is case ground, Pin 4 is the output, Pin 5 is the compensation output, and Pin 6 supplies voltage.
The device uses LVPECL output logic.
