The MMBD2838 is a monolithic dual switching diode from Zowie Technology Corporation. Its maximum peak reverse voltage is 75 Vdc and its maximum average rectified current is 150 mAdc. Its maximum total device power dissipation is 225 mW.

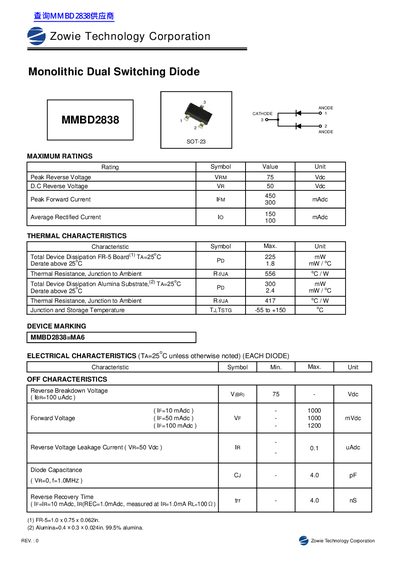

This document is a technical datasheet for the MMBD2838 Monolithic Dual Switching Diode manufactured by Zowie Technology Corporation. The device is packaged in an SOT-23 package and features two diodes within a single unit.
The datasheet provides maximum ratings including a peak reverse voltage of 75 Vdc and a junction temperature range from -55 to +150 °C. It also lists specific electrical characteristics such as forward voltage, reverse leakage current, and reverse recovery time under defined test conditions.
| Peak Reverse Voltage (VRM) | 75 Vdc |
|---|---|
| D.C Reverse Voltage (VR) | 50 Vdc |
| Peak Forward Current (IFM) | 450 mAdc |
| Average Rectified Current (Io) | 100 mAdc |
| Junction and Storage Temperature | -55 to +150 °C |
The junction and storage temperature range from -55 to +150 °C.
The reverse recovery time (trr) is 4.0 ns when IF=IR=10 mAdc and IR(REC)=1.0mAdc.
