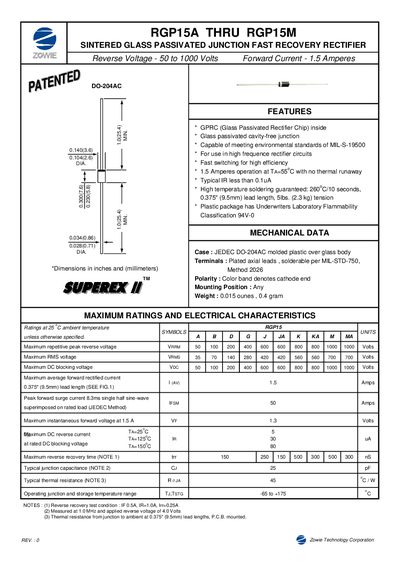

RGP15A THRU RGP15M SINTERED GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER is a rectifier from ROHM. Its maximum reverse voltage is 50-1000 volts and maximum forward current is 1.5 amps.
The RGP15A‑RGP15M series are sintered‑glass passivated junction fast‑recovery rectifiers designed for high‑frequency circuits. Features include a glass‑passivated cavity‑free junction, MIL‑S‑19500 environmental compliance, fast switching, and UL 94‑V0 flammability rating.
The datasheet lists maximum repetitive peak reverse voltage up to 1000 V, forward current of 1.5 A, typical junction capacitance of 25 pF, and thermal resistance of 45 °C/W. Mechanical data, package type (JEDEC DO‑204AC), weight, and characteristic curves for forward and reverse behavior are also provided.
| Reverse Voltage | 50 to 1000 V |
|---|---|
| Forward Current | 1.5 A |
| Package | JEDEC DO-204AC molded plastic over glass body |
| Weight | 0.015 ounces (0.4 gram) |
| Maximum instantaneous forward voltage at 1.5 A | 13 V |
| Typical junction capacitance | 25 pF |
| Thermal resistance (junction‑to‑ambient) | 45 °C/W |
| Operating temperature range | -65 to +175 °C |
The rectifier is rated for a continuous forward current of 1.5 A at 55 °C without thermal runaway.
It uses a JEDEC DO‑204AC molded plastic package over a glass body.
Typical junction capacitance is 25 pF measured at 1 MHz.
The device can withstand reverse voltages from 50 V up to 1000 V.
