GP60A THRU GP60M are sintered glass passivated junction rectifiers with GPRC (Glass Passivated Rectifier Chip) inside, maximum reverse voltage 50-1000V, maximum forward current 6.0A.

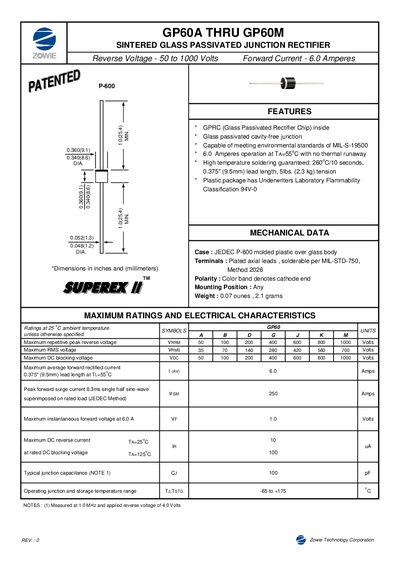

This document provides technical specifications for the Zowie GP60A through GP60M series of Sintered Glass Passivated Junction Rectifiers. Key features include a GPRC (Glass Passivated Rectifier Chip) inside a JEDEC P-600 molded plastic package, capable of meeting MIL-S-19500 environmental standards.
| Reverse Voltage Range | 50 to 1000 Volts |
|---|---|
| Forward Current | 6.0 Amperes |
| Maximum average forward rectified current | 6.0 Amps |
| Peak forward surge current IFSM | 250 Amps |
| Maximum instantaneous forward voltage VF | 1.0 Volts |
| Operating junction and storage temperature range | -65 to +175 °C |
The device supports a maximum average forward rectified current of 6.0 Amps.
The peak forward surge current is rated at 250 Amps for an 8.3ms single half sine-wave.
