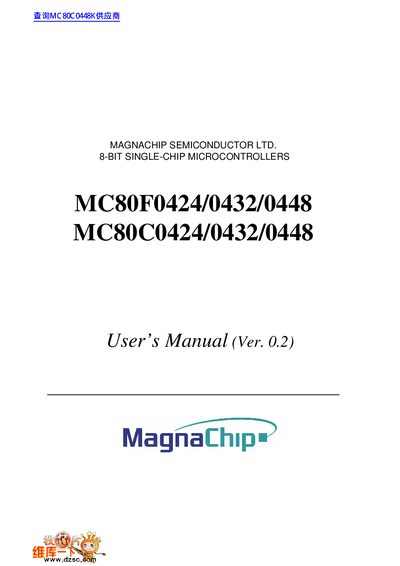

This manual introduces the features and characteristics of 8-BIT SINGLE-CHIP MICROCONTROLLERS MC80F0424/0432/0448 MC80C0424/0432/0448, including description, features, development tools, ordering information, etc.
The document is a user's manual for the MagnaChip MC80F0424/0432/0448 series of advanced CMOS 8-bit single-chip microcontrollers. These devices feature 24K to 48K bytes of on-chip ROM (FLASH), 1.5K bytes of RAM, and include peripherals such as a 10-bit A/D converter, UART, SIO, multiple timers/counters, and watchdog timers.
| RAM Size | 1.5K bytes |
|---|---|
| Operating Voltage Range | 2.7V to 5.5V (0.4~4MHz) |
| Operating Frequency Range | 0.4 ~ 12MHz |
| A/D Converter Resolution | 10-bit |
The minimum instruction execution time is 333ns at 12MHz for a NOP instruction.
The device features 57 I/O Ports when using the 64-pin package.
The FLASH memory has an endurance of 100 cycles and a data retention time of 10 years.
