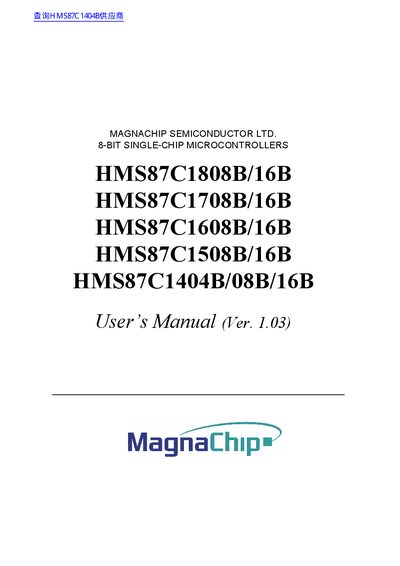

This user manual introduces the features and characteristics of HMS87C1808B/16B HMS87C1708B/16B HMS87C1608B/16B HMS87C1508B/16B HMS87C1404B/08B/16B, development tools, and ordering information.
This document is a User's Manual for the MagnaChip HMS87C1X04B/08B/16B series of advanced CMOS 8-bit microcontrollers. The manual details the device's standard features, including 4K/8K/16K bytes of ROM, 448 bytes of RAM, an 8-bit timer/counter, an 8-bit A/D converter, and programmable I/O pins. It also describes various development tools such as the CHOICE-Dr. in-circuit emulator and OTP programmers.
| Program Memory | 4K/8K/16K bytes |
|---|---|
| Data RAM | 448 bytes |
| Operating Voltage | 2.3V ~ 5.5V |
| Operating Frequency | 1 ~ 8.0MHz |
| A/D Converter | 8-bit |
| PWM Outputs | Two 10-bit |
The device is supported by a macro assembler, C compiler, and in-circuit emulator CHOICE-Dr.
Yes, it supports STOP mode and Wake-up Timer mode to reduce power consumption.
