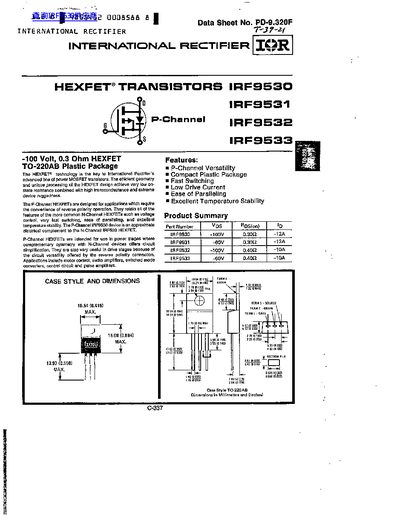

The document details four specific models: IRF9530 (-100V), IRF9531 (-60V), IRF9532 (-100V), and IRF9533 (-60V). These P-Channel HEXFET transistors feature a TO-220AB plastic package and are designed for applications requiring reverse polarity operation, such as motor control, audio amplifiers, and switched mode converters. The technology offers low on-state resistance combined with high transconductance and excellent temperature stability.
| Drain-Source Voltage (VDS) | -100 V / -60 V |
|---|---|
| Continuous Drain Current (ID) @ Tj=25°C | -12 A / -10 A |
| On-State Resistance (RDS(on)) | 0.30 Ohm / 0.40 Ohm |
| Package Type | TO-220AB Plastic Package |
The maximum storage temperature range extends up to +175°C.
