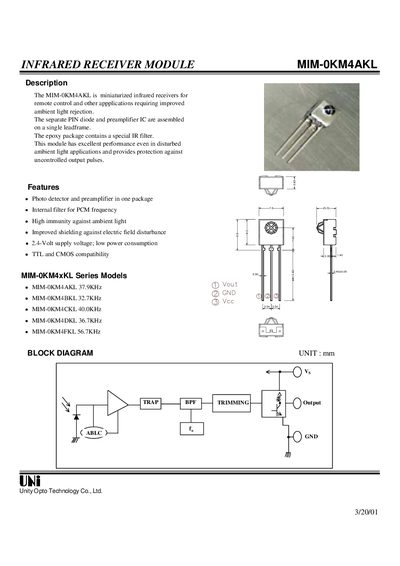

MIM-0KM4AKL is a miniaturized infrared receivers for remote control and other appplications requiring improved ambient light rejection, produced by Unity Opto Technology Co., Ltd.
The MIM-OKM4AKL is a miniaturized infrared receiver designed for remote control applications requiring improved ambient light rejection. The module integrates a photo detector and preamplifier in one package with an internal filter for PCM frequency, offering high immunity against ambient light and electric field disturbances.
| Supply voltage | 2.4 V |
|---|---|
| Response wavelength | 940 nm |
| Tuning frequency | 37.9 KHz |
| Operating temperature | -10~+60 Cc |
| Output form | active low output |
The module operates with a 2.4-Volt supply voltage.
Yes, it provides TTL and CMOS compatibility.
