The MIM-03M2AKF is a 37.9 KHZ miniaturized infrared receivers for remote control and other appplications requiring improved ambient light rejection.

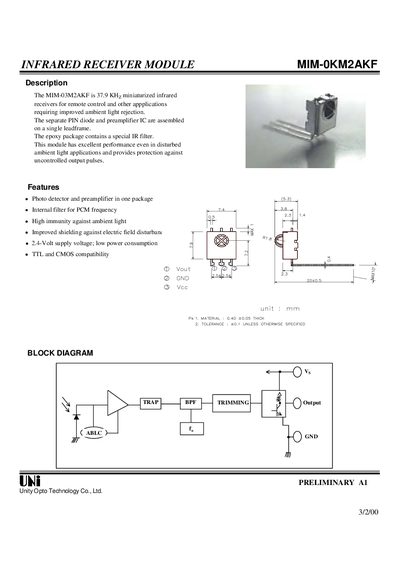

This manual describes the MIM-OKM2AKF infrared receiver module, a 37.9 kHz miniaturized device designed for remote‑control applications with high ambient‑light rejection. It details the integrated photodetector, preamplifier, internal IR filter, and the module's electrical characteristics.
The document includes absolute maximum ratings, electro‑optical parameters, test procedures, reliability guidelines, and warranty information, helping users integrate the module safely and evaluate its performance in various environmental conditions.
| Supply voltage (Vee) max | 5.8 V |
|---|---|
| Operating temperature range | -10 °C to +60 °C |
| Storage temperature range | -20 °C to +75 °C |
| Current consumption (no signal) | 5.0 mA |
| Response wavelength | 940 nm |
| Tuning frequency | 37.9 kHz |
| High‑level output voltage (Voh) | 2.2 V |
| Low‑level output voltage (Vol) | 0.5 V |
| Maximum detection distance | 10.0 m |
| Half‑angle of detection | +45° |
The absolute maximum supply voltage (Vee) is 5.8 V.
It operates from –10 °C up to +60 °C.
The maximum specified distance between emitter and detector is 10.0 m.
The module provides an active low output.
