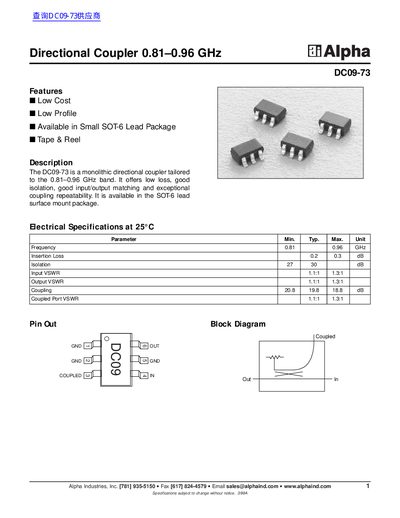

The DC09-73 is a monolithic directional coupler tailored to the 0.81-0.96 GHz band. It offers low loss, good isolation, good input/output matching and exceptional coupling repeatability.
The DC09-73 is a low-cost, low-profile monolithic directional coupler designed for the 0.81 to 0.96 GHz frequency range. It features an SOT-6 lead surface mount package and offers low insertion loss with good isolation and input/output matching.
| Frequency Range | 0.81-0.96 GHz |
|---|---|
| Insertion Loss (Typ) | 0.3 dB |
| Isolation (Typ) | 30 dB |
| Coupling (Typ) | 19.8 dB |
| Input VSWR | 1.3:1 |
| Operating Temperature | -40°C to +85°C |
The device operates in the 0.81 to 0.96 GHz band.
The absolute maximum input power is 40W CW.
It operates from -40°C to +85°C and stores from -65°C to +150°C.
