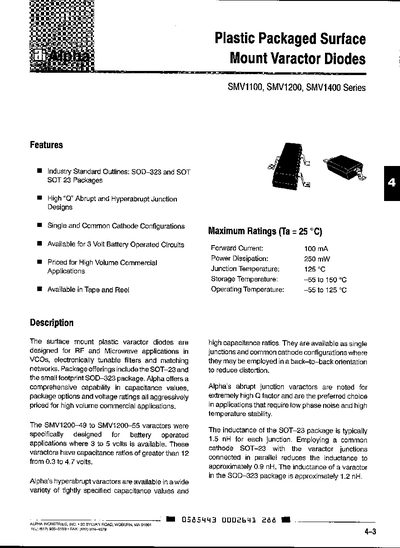

PDF: Alpha Industries SMV1100/1200/1400 Series Plastic Packaged Surface Mount Varactor Diodes Datasheet PDF

About this manual

This document provides technical specifications for the Alpha Industries SMV1100, SMV1200, and SMV1400 series of plastic packaged surface mount varactor diodes. These components are designed for RF and microwave applications in voltage-controlled oscillators (VCQs), electronically tunable filters, and matching networks.

What's inside

Features
Description
Maximum Ratings
Electrical Characteristics
Typical Performance Data
Outline Dimensions

Specifications

Power Dissipation	250 mW
Junction Temperature	125 °C
Operating Temperature Range	-55 to 125 °C

Frequently asked questions

What are the maximum ratings for forward current and power dissipation?

The diodes have a maximum forward current of 100 mA and a maximum power dissipation of 250 mW.

What is the operating temperature range for these varactor diodes?

The devices are rated to operate from -55 °C to 125 °C.

What is the typical inductance of a varactor in the SOD-323 package?

The inductance for this package type is approximately 1.2 nH.
