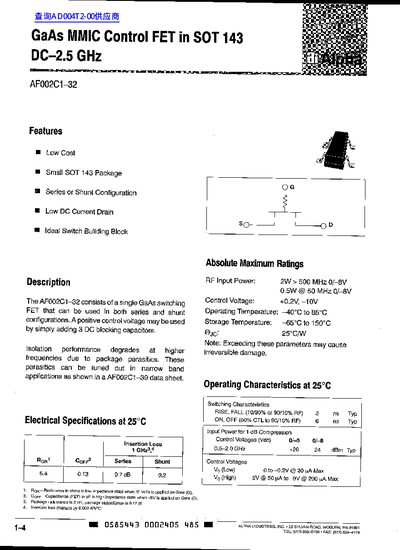

This document is a technical datasheet for the Alpha Industries AF002C1-32, a GaAs MMIC Control FET housed in an SOT 143 package. The device operates from DC to 2.5 GHz and is designed for use in both series and shunt configurations as a building block for switches.
The datasheet provides absolute maximum ratings, operating characteristics, and switching specifications at 25°C. It includes typical performance data graphs for insertion loss and isolation versus frequency, along with truth tables for negative and positive voltage operations.
| Frequency Range | DC-2.5 GHz |
|---|---|
| Package Type | SOT 143 |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to 150°C |
| Rise/Fall Time (Typ) | 3 ns |
| ON/OFF Delay (Typ) | 6 ns |
The device operates from DC up to 2.5 GHz.
The control voltage must not exceed +0.2V or go below -10V.
