This datasheet provides detailed information about the CLM4122 / CLM4322 product, including features, applications, specifications, packages, and supplier information.

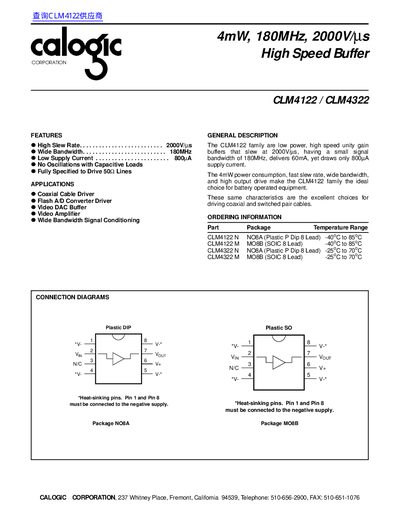

The document describes the CLM4122 family of low power, high speed unity gain buffers. Key features include a slew rate of 2000V/us for the CLM4122 model, a small signal bandwidth of 180MHz, and an output drive capability of 60mA while drawing only 800µA supply current.
The datasheet provides absolute maximum ratings, DC and AC electrical characteristics tables, typical performance graphs, and connection diagrams. It also includes mechanical dimensions for the NO8A (Plastic DIP) and MO8B (SOIC) packages.
| Output Drive Current | 60mA |
|---|
These buffers are suitable for coaxial cable drivers, flash A/D converter drivers, video DAC buffers, and wide bandwidth signal conditioning.
The absolute maximum rating for supply voltage is +10V.
The NO8A package can be stored between -65°C and +150°C.
