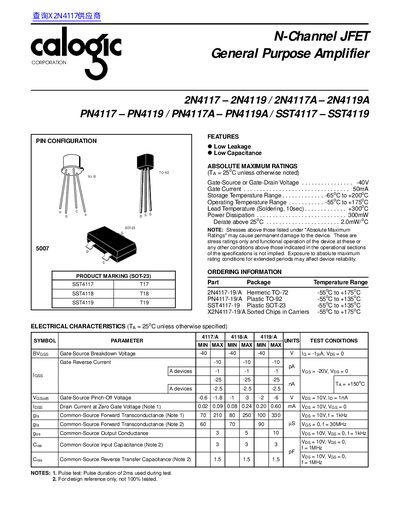

2N4117-2N4119/2N4117A-2N4119A PN4117-PN4119/PN4117A-PN4119A/SST4117-SST4119 are N-Channel JFET General Purpose Amplifiers with low leakage and low capacitance.
The 2N4117 series are N‑Channel JFETs intended for general‑purpose amplification applications. The document lists pin configurations for TO‑92, TO‑72, and SOT‑23 packages and highlights low leakage and low capacitance features.
Key specifications include a gate‑source voltage rating of –40 V, a maximum gate current of 50 mA, storage temperature range from –65 °C to +200 °C, and a power dissipation rating of 300 mW. Ordering information and detailed electrical characteristics such as breakdown voltage, drain current, and transconductance are also provided.
| Gate‑Source or Gate‑Drain Voltage | -40 V |
|---|---|
| Gate Current | 50 mA |
| Storage Temperature Range | -65 °C to +200 °C |
| Operating Temperature Range | 55 °C to +175 °C |
| Power Dissipation | 300 mW |
| Derating above 25 °C | 2.0 mW/°C |
| Gate‑Source Breakdown Voltage (BVgs) | -40 V |
The device is rated for a maximum gate‑source (or gate‑drain) voltage of –40 V.
It can be stored from –65 °C up to +200 °C.
The maximum power dissipation is 300 mW.
The series is offered in TO‑92, TO‑72, and SOT‑23 packages.
