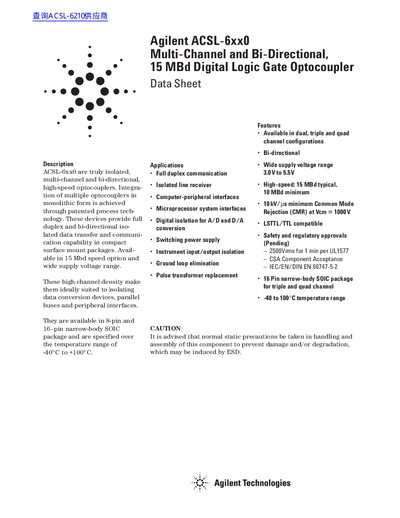

This document is the datasheet of Agilent ACSL-6xx0 series, which introduces the features of the products in this series, including the type, optional configuration, voltage range, speed, etc. These products are mainly used in data conversion devices, parallel buses and peripheral interfaces.
The Agilent ACSL-6xx0 series consists of truly isolated, multi-channel, and bi-directional high-speed optocouplers. These devices integrate multiple optocouplers into a monolithic form using patented process technology to provide full-duplex and bi-directional isolated data transfer in compact surface mount packages.
Available in 8-pin and 16-pin narrow-body SOIC packages, these components operate over a temperature range of -40°C to +100°C. They are specified for high-speed operation at up to 15 MBd with a wide supply voltage range from 3.0V to 5.5V.
| Data Rate (Typical) | 15 MBd |
|---|---|
| Supply Voltage Range | 3.0V to 5.5V |
| Operating Temperature Range | -40°C to +100°C |
| Common Mode Rejection (CMR) | 10kV/LUs minimum |
| UL Safety Rating | 2500Vrms for 1 min |
The ACSL-6xx0 series is available in dual, triple, and quad channel configurations.
The typical data rate is 15 MBd, with a minimum of 10 MBd.
