This document provides technical data for SaRonix Voltage Controlled Crystal Oscillator, including frequency range, frequency stability, output waveform, operating temperature range, supply voltage, supply current, etc.

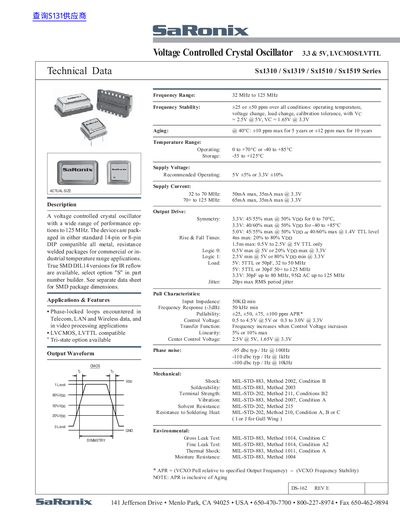

This document provides technical specifications for the SaRonix Sx1310, Sx1319, Sx1510, and Sx1519 series of Voltage Controlled Crystal Oscillators (VCXOs). These devices operate with a frequency range of 32 MHz to 125 MHz and are available in standard 14-pin or 8-pin DIP compatible all-metal packages. They support both commercial and industrial temperature ranges.
| Frequency Range | 32 MHz to 125 MHz |
|---|---|
| Supply Voltage (Operating) | 5V ±5% or 3.3V ±10% |
| Frequency Stability | +25 or +50 ppm over all conditions |
| Operating Temperature Range | 0 to +70°C or -40 to +85°C |
The device operates within a frequency range from 32 MHz to 125 MHz.
The maximum aging rate is +12 ppm when measured over a period of 10 years.
