The S1800 / S1803 / S1850 series are crystal-controlled, low-current oscillators from Saronix. They provide precise rise and fall times to drive high speed CMOS and TTL loads. The operating voltage is 3.3V and 5V. The frequency range is 1.5440 MHz to 80 MHz. The frequency stability is ±25, ±50, ±100 ppm. The operating temperature range is -10 to +70°C or -40 to +85°C. The storage temperature range is -55 to +125°C.

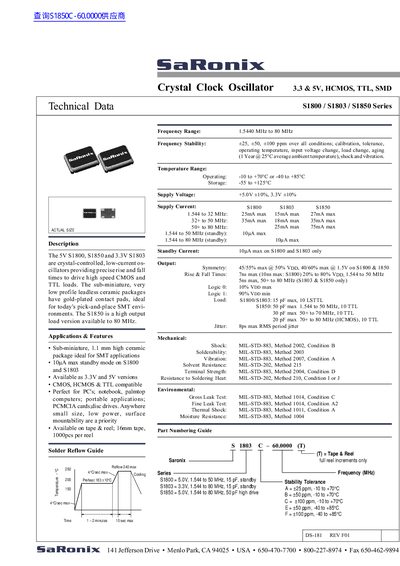

This document provides technical data for the SaRonix $1800, $1803, and $1850 series of crystal clock oscillators. These devices are low-current, sub-miniature components designed to drive high-speed CMOS and TTL loads in surface mount technology (SMT) environments.
| Frequency Range | 1.5440 MHz to 80 MHz |
|---|---|
| Supply Voltage | +5.0V +10%, 3.3V 10% |
| Package Height | 1.1 mm |
| Load Capacitance ($1850, 1.544-50 MHz) | 50 pF |
The $1850 series is available up to 80 MHz.
Stability ranges from +425 ppm down to +/- 100 ppm depending on temperature and calibration.
Yes, they are designed to drive high speed CMOS and TTL loads.
