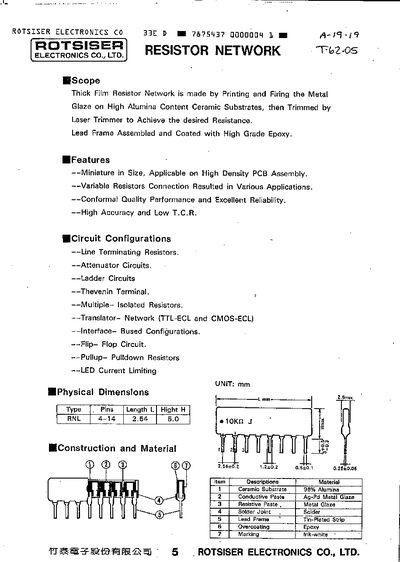

This document describes the ROTSISER A-19-19 Thick Film Resistor Network. The component is manufactured by printing and firing metal glaze on high alumina ceramic substrates, followed by laser trimming to achieve desired resistance values. It features a lead frame assembled with high-grade epoxy coating.
| Per-Resistor rated Power | 0.125 W |
|---|---|
| Nominal Resistance Range | 10 ohm-1 Mohm |
| Temperature Coefficient of Resistance | +/- 100, 200 ppm |
| Maximum Working Voltage | 100 V |
| Operating Temperature Range | -40 to +150 Deg.s C |
The ceramic substrate consists of 96% Alumina.
Available nominal resistance tolerances include +/-1%, 2%, and 5%.
