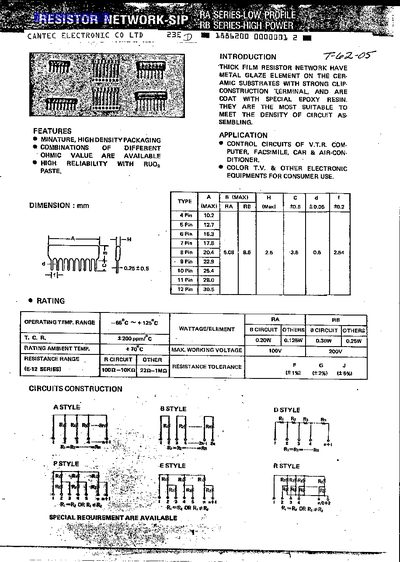

This document describes the features of Cantelec's RA and RB series resistor networks. These components consist of metal glaze elements on ceramic substrates with strong clip-construction terminals coated in special epoxy resin. They are designed for high density circuit applications where miniature size and reliability are required.
The text provides technical specifications including operating temperature ranges, wattage ratings per element, resistance values, and tolerance levels. It also includes dimensional data for various pin counts (4 to 12 pins) and a guide on how to order the components based on series type, number of circuits, and tolerance.
| Operating Temperature Range | -55°C ~ +128°C |
|---|---|
| Resistance Tolerance (RA) | ±1% |
| Resistance Tolerance (RB) | ±5% |
| Max Working Voltage | 200V |
They are suitable for control circuits of VTRs, computers, facsimiles, cars, air conditioners, color TVs, and other consumer electronic equipment.
The units operate within a temperature range of -55°C to +128°C.
The maximum specified ambient temperature is +70°C.
Circuit applications support 100V while others support 200V.
