The product is NIC COMPONENTS CORPORATION's single-in-line “SIP” resistor networks, with the features of low profile, wide range of resistance values, high reliability and economical pricing.
The NRN Series resistor networks are single‑in‑line (SIP) devices with a conformal‑coated, low‑profile design. They offer a wide resistance range, high reliability, and options from 4 to 13 pins across six circuit types.

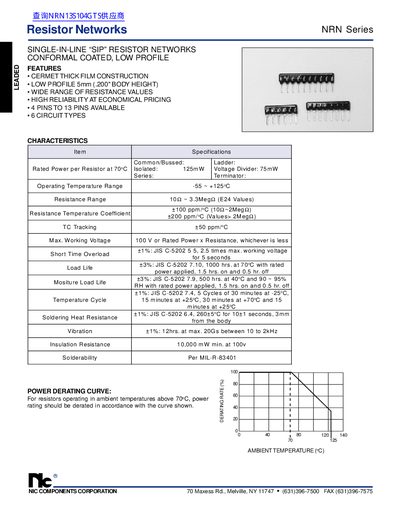

The datasheet lists key characteristics such as operating temperature, power ratings, voltage limits, and mechanical dimensions, along with a part‑numbering system and circuit diagrams for common, isolated, series, voltage‑divider, and termination configurations.
| Body height | 5 mm (0.200") |
|---|---|
| Resistance range | 10 Ω – 3.3 MΩ (E24 values) |
| Rated power per resistor at 70°C (isolated) | 125 mW |
| Operating temperature range | -55 °C to +125 °C |
| Maximum working voltage | 100 V or rated power × resistance, whichever is less |
| Insulation resistance | ≥10,000 MΩ at 100 V |
The NRN series operates from –55 °C up to +125 °C.
The series is offered with 4 to 13 pins.
The maximum working voltage is 100 V or the rated power multiplied by resistance, whichever is lower.
Power rating should be reduced according to the derating curve shown in the datasheet.
