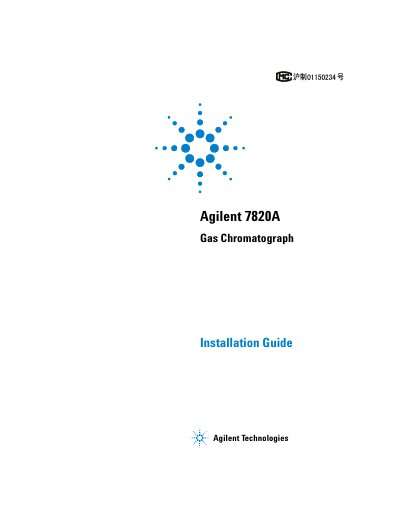

This manual introduces the Agilent 7820A gas chromatograph, including its components, installation, setup, and use, and provides troubleshooting guidance.
The installation procedure assumes that the site has been prepared in accordance with the Site Preparation guide. The process requires specific tools provided by Agilent, such as a toolkit (19199T) and tubing kit (19199TF), along with user-supplied wrenches and adapters for gas connections.
Agilent provides a toolkit (19199T) containing tools for installation and maintenance tasks, as well as a tubing kit (19199TF) with preassembled tubing.
Users must provide wrenches for tightening plumbing connections and adapters to connect their gas supplies to the GC's fittings.
A two-person lift is recommended due to the weight of the parts to prevent personal injury.
