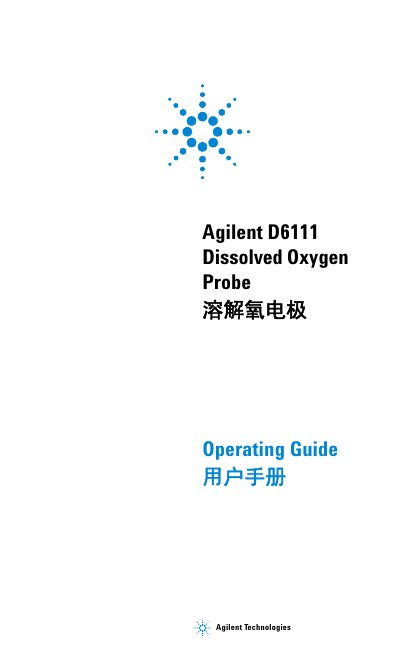

This manual introduces the use and precautions of Agilent D6111 Dissolved Oxygen Probe. The probe can measure the dissolved oxygen concentration in aqueous solutions.
The Agilent D6111 is a laboratory-grade dissolved oxygen (DO) probe designed to measure dissolved oxygen concentrations in aqueous solutions. It operates within a temperature range of 0 to 45 ºC and measures concentrations from 0 to 20 mg/L. The device features an ABS body, a 12 mm diameter, and connects via a miniDin4 interface with a 1000 mm cable length.
| Temperature range | 0 to 45 ºC |
|---|---|
| Concentration range | 0 to 20 mg/L |
| Body material | ABS |
| Probe diameter | 12 mm |
| Probe length | 120 mm |
| Cable interface | miniDin4 |
| Cable length | 1000 mm |
If used frequently, replace the DO filling solution weekly.
The probe operates within a temperature range of 0 to 45 ºC.
The probe measures dissolved oxygen concentrations up to 20 mg/L.
A new, refilled, or disconnected probe must be polarized for more than 1 hour.
