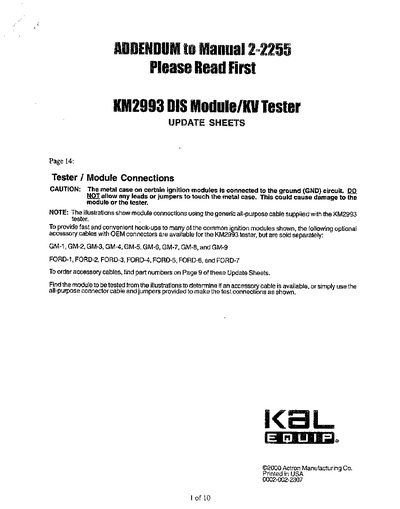

This document serves as an addendum to the manual for the Actron KM2993 DIS Module/KW Tester. It provides critical safety warnings regarding metal case grounding and details on optional accessory cables (GM-1 through GM-9, FORD-1 through FORD-7) available for specific vehicle makes.
The guide includes wiring diagrams for specific systems such as the GM 3.8L C3i and GM 8 Cylinder Northstar engines. It also features a comprehensive System Selection Application Chart covering General Motors vehicles including Buick, Chevrolet, Cadillac, Oldsmobile, Pontiac, Saturn, and others, listing engine models, years, system types, and required accessory cables.
| Document Type | ADDENDUM to Manual 2-2255 |
|---|---|
| Product Name | KM2993 DIS Module/KW Tester |
Do not allow any leads or jumpers to touch the metal case, as it is connected to ground and could cause damage.
Connect the centermost yellow wire to its mating cable wire connector provided for System 18.
No, they are sold separately. The document lists part numbers on Page 9.
