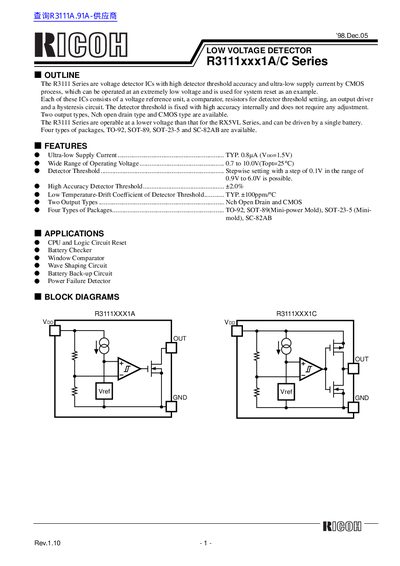

The R3111 Series are voltage detector ICs with high detector threshold accuracy and ultra-low supply current by CMOS process.
The R3111 Series are voltage detector ICs featuring high detector threshold accuracy and ultra-low supply current via a CMOS process. These devices can operate at extremely low voltages and are suitable for system reset functions, battery checking, and power failure detection.
Each IC in the series includes an internal voltage reference unit, comparator, resistors for setting thresholds, an output driver, and a hysteresis circuit. The detector threshold is fixed with high accuracy internally, eliminating the need for external adjustment. Two output types are available: Nch open drain and CMOS.
| Supply Current (Typical) | 0.8 pA (Vop=1.5V) |
|---|---|
| Operating Voltage Range | 0.7 to 10.0V |
| Temperature-Drift Coefficient | TYP. +/-100ppm/°C |
| Output Types | Nch Open Drain and CMOS |
| Package Types | TO-92, SOT-89, SOT-23-5, SC-82AB |
| Maximum Operating Voltage | 10 V |
| Operating Temperature Range | -40 to 85 °C |
Applications include CPU and Logic Circuit Reset, Battery Checker, Window Comparator, Wave Shaping Circuit, Battery Back-up Circuit, and Power Failure Detector.
The typical supply current is 0.8 pA when Vop is 1.5V.
The series offers Nch Open Drain and CMOS output types.
