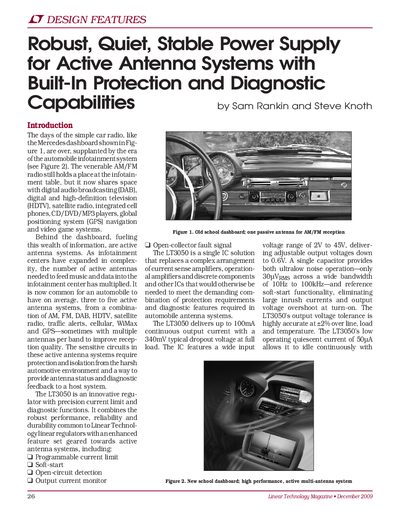

This document describes a robust, quiet, stable power supply for active antenna systems in automotive infotainment systems, with built-in protection and diagnostic capabilities. It also discusses the various active antenna systems used in current automotive infotainment systems and mentions the innovative LT3050 regulator product.
The document introduces the LT3050 as an innovative regulator featuring precision current limit and diagnostic functions. It is specifically engineered to replace complex arrangements of discrete components in automobile infotainment systems by providing robust performance, reliability, and durability for active antenna applications.
Key features include a wide input voltage range (2V to 45V), adjustable output voltages down to 0.6V, and ultralow noise operation. The device offers protection against reverse battery conditions, load dumps, and thermal issues, while providing diagnostic feedback through an open-collector fault signal and integrated current monitoring.
| Continuous Output Current | 100mA |
|---|---|
| Dropout Voltage | 340mV typical |
| Output Voltage Accuracy | +2% |
| Operating Temperature Range | -40 to 125°C |
The device delivers up to 100mA continuous output current.
It has a 340mV typical dropout voltage when operating at full load.
The IC features a wide input voltage range of 2V to 45V.
