The document describes the features and characteristics of the GTO2 series gate drive transformer, suitable for frequencies from 75kHz to over 1MHz, and suitable for pick and place applications.

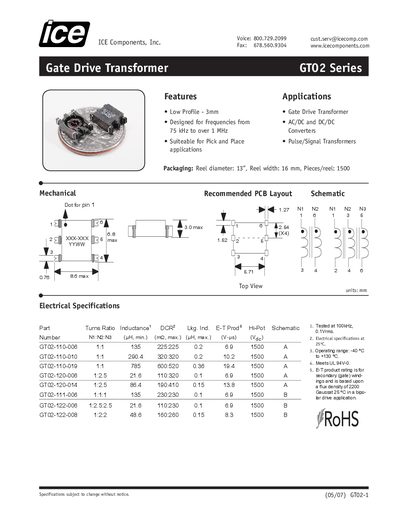

This document provides technical specifications for the ICE Components GT02 Series of gate drive transformers. These components are designed as low-profile units with a height of 3mm, intended for use in pick-and-place applications and packaging reels.
The datasheet details electrical characteristics including turns ratios, minimum inductance, maximum DC resistance (DCR), leakage inductance, and insulation voltage ratings. It also specifies the operating temperature range from -40°C to +130°C and notes compliance with UL 94V-0 standards.
| Height | 3mm |
|---|---|
| Flammability Rating | UL 94V-0 |
Yes, the transformer meets UL 94V-0 requirements.
