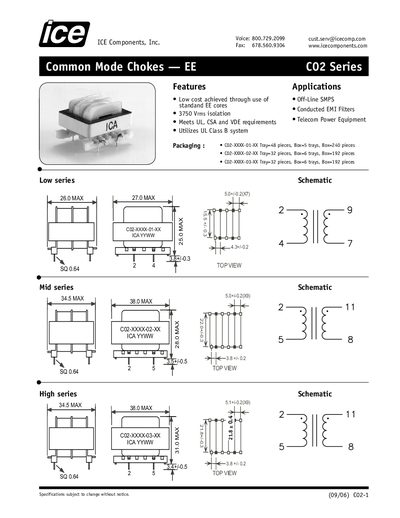

The specifications of the EE C02 series common mode chokes, including inductance, current, impedance, insulation, etc.
The EE C02 Series from ICE Components offers low‑cost common mode chokes designed for off‑line SMPS, telecom power equipment and other EMI‑critical applications. The series meets UL, CSA and VDE requirements and provides up to 3750 V rms isolation.
Three product families are defined – Low, Mid and High series – each with a range of inductance values and current ratings. Detailed electrical specifications are listed for each part number, including inductance, IDC, leakage inductance, DCR and isolation voltage, measured at 10 kHz, 0.5 V rms.
| Part C02-2000-03-00 (High Series) – Isolation Voltage | 3750 V rms |
|---|
Packaging includes trays of 48 pieces (CO2‑XXXX‑01‑XX) and boxes of 240 pieces, as well as other tray/box configurations such as 32‑piece trays.
The series meets UL, CSA and VDE requirements.
