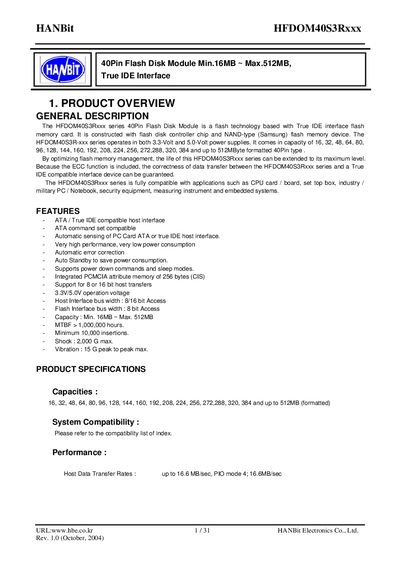

The HFDOM40S3Rxxx series 40Pin Flash Disk Module is a flash technology based with True IDE interface flash memory card. It is constructed with flash disk controller chip and NAND-type (Samsung) flash memory device. The HFDOM40S3R-xxx series operates in both 3.3-Volt and 5.0-Volt power supplies. It comes in capacity of 16, 32, 48, 64, 80, 96, 128, 144, 160, 192, 208, 224, 256, 272,288, 320, 384 and up to 512MByte formatted 40Pin type . By optimizing flash memory management, the life of this HFDOM40S3Rxxx series can be extended to its maximum level. Because the ECC function is included, the correctness of data transfer between the HFDOM40S3Rxxx series and a True IDE compatible interface device can be guaranteed. The HFDOM40S3Rxxx series is fully compatible with applications such as CPU card / board, set top box, industry / military PC / Notebook, security equipment, measuring instrument and embedded systems.
The HANBit HFDOM40S3Rxxx series is a 40Pin Flash Disk Module constructed with a flash disk controller chip and NAND-type Samsung flash memory. It supports both 3.3-Volt and 5.0-Volt power supplies and offers capacities ranging from 16MB to 512MB formatted in 40Pin type configurations.
The module features an ATA/True IDE compatible host interface with automatic sensing of PC Card ATA or true IDE interfaces. Key characteristics include very high performance, low power consumption, integrated error correction (ECC), and support for sleep modes to save energy.
| Capacity Range | 16MB to 512MB |
|---|---|
| Interface Type | True IDE Interface |
| Operating Voltage | 3.3V/5.0V |
| Host Data Transfer Rate | up to 16.6 MB/sec |
| Operating Temperature | 0°C to +70°C |
The series is available in capacities of 16, 32, 48, 64, 80, 96, 128, 144, 160, 192, 208, 224, 256, 272, 288, 320, 384 and up to 512MB.
The Mean Time Between Failures (MTBF) is rated to be greater than 1,000,000 hours.
