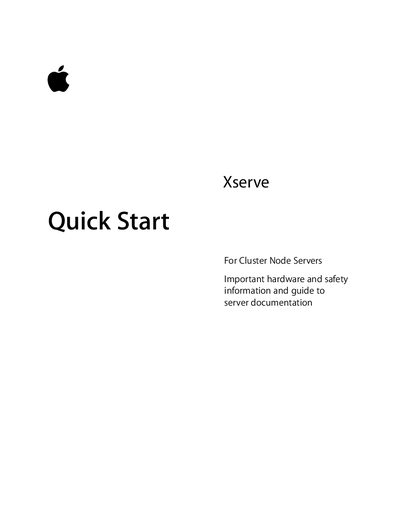

Xserve Quick Start1

This booklet provides an illustrated reference for your Xserve hardware and an orientation to unpacking, setting up, and using your server.

Brand: Xserve
Category: Servers Computer
Document type: Quick Start Guide
Language: English
Pages: 20
File format: PDF
File size: 319 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 15C6249BEA017E13EDF0B319CD497842
PDF: Xserve Quick Start1 PDF

About this manual

This booklet serves as a reference for unpacking, setting up, and operating the Apple Xserve hardware. It includes safety information, an overview of front and back panel features, and step-by-step instructions for removing the protective faceplate and shipping screws.

The document also covers using Front Panel Mode to boot from various sources such as the system disc, network server, or internal drive. Additionally, it explains how to install or restore server software on one or multiple systems using a remote computer via Network Install or the Apple Software Restore command.

What's inside

Overview of Xserve Hardware
Removing the Server From Packaging
Your Server at a Glance—Front Panel
Your Server at a Glance—Back Panel
Using Front Panel Mode on an Xserve System
Installing and Restoring from a Network Server

Specifications

FireWire ports (front)	1 FireWire 400 port
FireWire ports (back)	2 FireWire 800 ports
Ethernet port	Gigabit Ethernet port
PCI expansion slots	2 PCI card expansion slots
USB ports	2 USB ports

Frequently asked questions

How do I remove the protective faceplate?

Unscrew the thumbscrews at each side of the faceplate and lift it off.

Can I use the Xserve as a desktop computer?

No, it is specifically designed for rack mounting.

How do I boot from the network server?

Press and release the system identifier button until Light 2 in the bottom row turns on.
