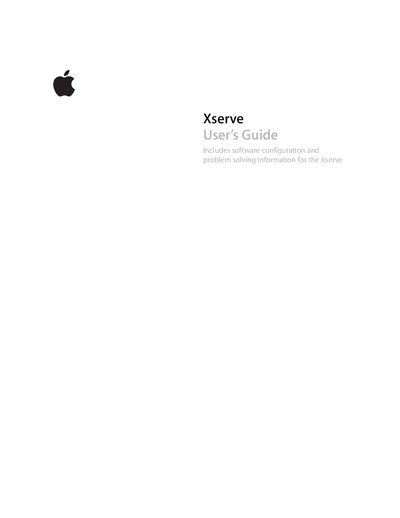

Apple Xserve User Guide

About this manual

This user's guide provides instructions on how to start up and shut down the Xserve, install and configure server software, monitor its status, and solve common problems. It includes an overview of features, controls, and components found on the front and back panels.

The document details procedures for initial setup, routine startup and shutdown methods, remote management options, and how to update or reinstall server software. Additionally, it offers troubleshooting solutions and information on using Apple Xserve Diagnostics Software.

What's inside

• About This Guide
• Xserve at a Glance—Front Panel
• Xserve at a Glance—Back Panel
• Starting Up the Xserve
• Shutting Down the Xserve
• Monitoring the Xserve
• Updating or Installing Software on the Xserve
• Troubleshooting

Frequently asked questions

How do I force the Xserve to shut down?

Press and hold the On/standby button for approximately 5 seconds.

What is the function of the system identifier light?

The light flashes if a problem is detected and can be used manually or remotely to locate a specific unit in a rack.

How many drive modules can be installed?

You can install up to three Serial ATA (SATA) or Serial Attached SCSI (SAS) drive modules.
