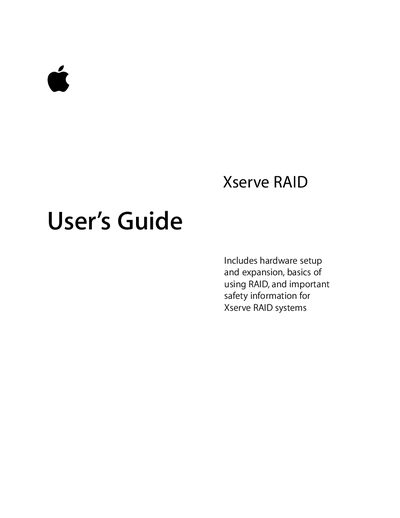

Apple Xserve RAID User's Guide

This manual includes hardware setup and expansion, basics of using RAID, and important safety information for Xserve RAID systems.

Brand: Xserve
Category: Storage devices
Document type: User Manual
Language: English
Pages: 92
File format: PDF
File size: 2.2 MB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 63EC4041AAE0D75FFB21A7B11C82012C
PDF: Apple Xserve RAID User's Guide PDF

About this manual

The Apple Xserve RAID is a high-availability, scalable storage solution designed for rack-mounted environments. It features dual independent RAID controllers with 128 MB RAM cache, support for up to 14 hot-swappable ATA-100 drive modules, and dual 2-Gb copper fibre channel ports. The system also includes dual power supplies, cooling modules, and Ethernet ports for remote management.

What's inside

Unpacking the System
Your System at a Glance
Guidelines for Installation
Installing the System in the Rack
Connecting Xserve RAID to a Host System
Starting Up and Turning Off the System
Replacing Components
About RAID Storage
RAID Levels and Schemes
Important Safety Information

Specifications

Enclosure Height	3U (5.25 inches)
RAID Controller RAM Cache	minimum of 128 megabytes (MB) per controller
Maximum Drive Modules	up to 14 hot-swappable ATA-100 Apple Drive Modules
Fibre Channel Ports	dual 2-gigabit (Gb) copper fibre channel ports
Operating System Compatibility	Mac OS X version 10.2.4 or later

Frequently asked questions

How many people are required to install the system?

Two people are required to unpack, lift, or mount the Xserve RAID system in a rack.

Can drive modules be replaced while the system is running?

Yes, the system supports up to 14 hot-swappable ATA-100 Apple Drive Modules.

What type of power supplies does the Xserve RAID have?

The system features dual hot-swappable power supplies with dual AC power connections.

Download PDF (2.2 MB)
