This data sheet provides specifications and features information for CN series double pole power rocker switches.

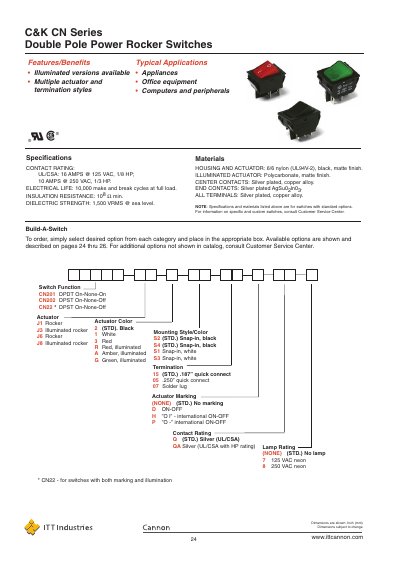

The document details the C&K CN Series Double Pole Power Rocker Switches, covering three specific models: CN201 (DPDT On-None-On), CN202 (DPST On-None-Off), and CN22 (*DPST On-None-Off with marking and illumination). It outlines available options for actuators, terminations, mounting styles, and actuator colors to facilitate custom ordering.
| Contact Rating (UL/CSA) | 16 AMPS @ 125 VAC, 1/8 HP; 10 AMPS @ 250 VAC, 1/3 HP |
|---|---|
| Electrical Life | 10,000 make and break cycles at full load |
| Insulation Resistance | 108Ωmin |
| Dielectric Strength | 1,500 VRMS @ sea level |
The CN201 is a DPDT On-None-On function, while the CN202 is a DPST On-None-Off function.
The standard housing and actuator are made of 6/6 nylon with a UL94V-2 rating, finished in black matte.
The J3 illuminated rocker and J6 rocker actuators are available with the CN201 switch function.
