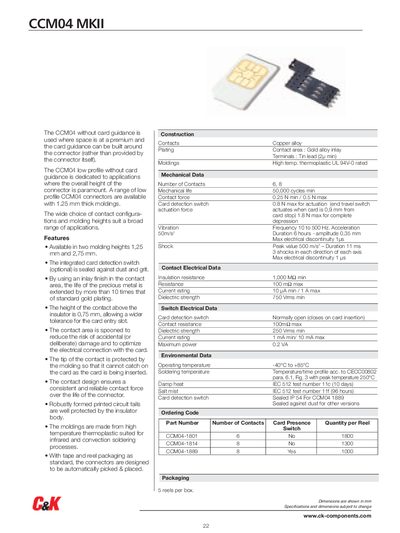

CCM04 card-mounted micro switch with card detection switch.
The CCM04 MkII is a low‑profile connector without card guidance, designed for applications where overall height is critical. It offers two molding heights (1.25 mm and 2.75 mm) and a contact height of 0.75 mm, allowing a wider tolerance for card entry. Features include an optional sealed card‑detection switch, inlay‑finished contacts for extended life, and robust printed‑circuit tails.
The handbook lists detailed mechanical and electrical data such as a minimum mechanical life of 50 000 cycles, contact force ranges, insulation resistance, dielectric strength, and environmental ratings (‑40 °C to +85 °C, IP54 for the switch). Ordering codes, dimensional drawings, and packaging information are also provided.
| Molding heights | 1.25 mm and 2.75 mm |
|---|---|
| Contact height above insulator | 0.75 mm |
| Mechanical life | ≥ 50 000 cycles |
| Contact force | 0.25 N min / 0.5 N max |
| Vibration frequency | 10 – 500 Hz |
| Shock peak value | 500 m/s² (11 ms) |
| Insulation resistance | ≥ 1 000 MΩ |
| Contact resistance | ≤ 100 mΩ |
| Current rating (contact) | 10 µA min / 1 A max |
| Dielectric strength (contact) | ≥ 750 V |
| Switch contact resistance | ≤ 100 mΩ |
| Switch dielectric strength | ≥ 250 V |
| Switch current rating | 1 mA min / 10 mA max |
| Operating temperature range | -40 °C to +85 °C |
| Soldering peak temperature | 250 °C |
| IP rating (switch) | IP54 |
The connector is offered in two molding heights: 1.25 mm and 2.75 mm.
The mechanical life is specified as a minimum of 50 000 cycles.
It can operate from –40 °C up to +85 °C.
The series is available with either 6 or 8 contacts.
