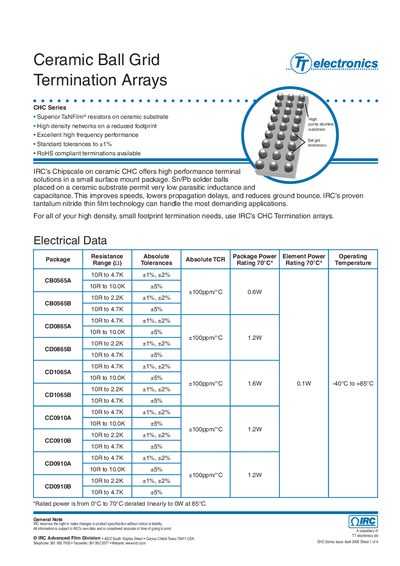

IRC CHC Series Ceramic Ball Grid Termination Arrays Datasheet

Specifications for IRC CHC series ceramic resistors

Brand: TTelectronics
Category: Chips
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 1.1 MB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: BB645BD8B0E7AE099487148454CF261B
PDF: IRC CHC Series Ceramic Ball Grid Termination Arrays Datasheet PDF

About this manual

This document details the IRC CHC Series of Ceramic Ball Grid Termination Arrays, designed for high-density networks on a reduced footprint. The components utilize superior TaNFilm resistors on a high-purity alumina substrate to provide excellent high-frequency performance with standard tolerances up to +1%.

What's inside

Electrical Data
Return Loss Data
Eye Diagram Data
Impedance Response Data
Environmental Data
Physical Data and Schematic Diagrams
Ordering Data

Specifications

Technology	Tantalum nitride thin film technology
Standard Tolerances	+1%
Operating Temperature Range	-40°C to +85°C
Pitch Options	0.65mm and 1.0mm
