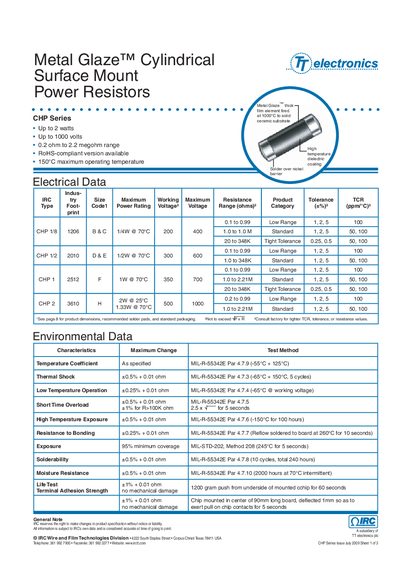

The document introduces IRC's Metal Glaze™ cylindrical surface mount power resistors. These resistors feature a high temperature dielectric coating and metal glaze thick film element fired at 1000°C. They are suitable for working voltages up to 1000 volts and have a maximum power rating of 2 watts. The resistance range is from 0.2 ohms to 2.2 megohms, with various tolerances and temperature coefficients available.
This document provides technical data for the IRC CHP Series of Metal Glaze™ Cylindrical Surface Mount Power Resistors. The product line includes four main types (CHP 1/8, CHP 1/2, CHP 1, and CHP 2) with power ratings up to 2 watts and resistance ranges from 0.2 ohm to 2.2 megohm.
| Maximum Operating Temperature | 150°C |
|---|---|
| Power Rating Range | Up to 2 watts |
| Maximum Working Voltage | 1000 volts |
| Resistance Range | 0.2 ohm to 2.2 megohm |
Yes, a RoHS-compliant version is available for this product series.
Standard packaging includes 7" and 13" reels, with bulk packaging also offered.
