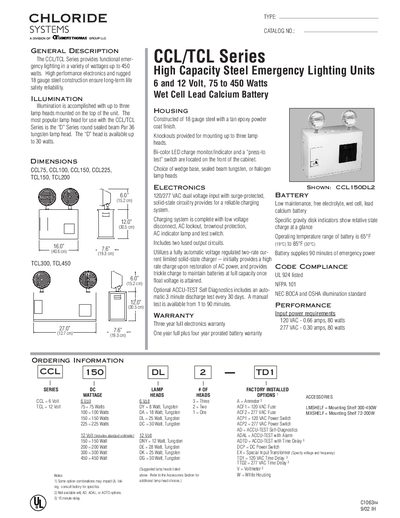

The CCL/TCL Series provides functional emergency lighting in a variety of wattages up to 450 watts. High performance electronics and rugged 18 gauge steel construction ensure long-term life safety reliability. The housing is constructed of 18 gauge steel with a tan epoxy powder coat finish. Knockouts provided for mounting up to three lamp heads. Bi-color LED charge monitor/indicator and a “press-to-test” switch are located on the front of the cabinet. Choice of wedge base, sealed beam tungsten, or halogen lamp heads. Electronics include 120/277 VAC dual voltage input with surge-protected, solid-state circuitry provides for a reliable charging system. Charging system is complete with low voltage disconnect, AC lockout, brownout protection, AC indicator lamp and test switch. Includes two fused output circuits. Utilizes a fully automatic voltage regulated two-rate current limited solid-state charger -- initially provides a high rate charge upon restoration of AC power, and provides trickle charge t
