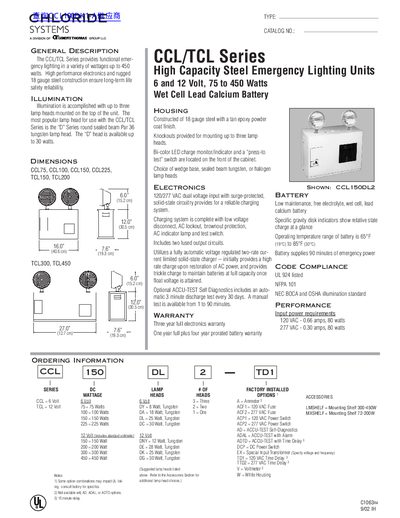

The CCL/TCL Series is a functional emergency lighting device that provides illumination in various wattages up to 450 watts. It features high-performance electronics and rugged 18 gauge steel construction for long-term life safety reliability.
The CCL/TCL Series emergency lighting units deliver reliable illumination for safety applications. They are built with 18‑gauge steel housing, a tan epoxy powder‑coat finish, and a wet‑cell lead‑calcium battery that supplies 90 minutes of emergency power.
Key features include dual‑voltage (120/277 VAC) solid‑state charging, optional ACCU‑TEST self‑diagnostics, and compliance with UL 924, NFPA 101, NEC, and OSHA standards. The units support a range of lamp heads, including the popular “D” Series sealed‑beam lamp.
| Operating Voltage | 6 V and 12 V |
|---|---|
| Wattage Range | 75 W to 450 W |
| Input Power (120 VAC) | 0.66 A, 80 W |
| Input Power (277 VAC) | 0.30 A, 80 W |
| Battery Type | Wet‑cell lead calcium |
| Battery Temperature Range | 65 °F (19 °C) to 85 °F (30 °C) |
| Emergency Operation Time | 90 minutes |
| Warranty | 3 years electronics, 1 year + 4 years prorated battery |
The unit provides a standard sustained emergency operation for 90 minutes.
They use a low‑maintenance wet‑cell lead calcium battery.
The units accept dual voltage input of 120 VAC or 277 VAC.
