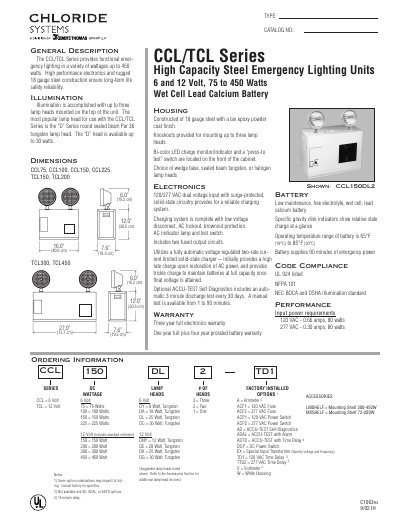

The CCL/TCL series provides functional emergency lighting in a variety of wattages up to 450 watts. High performance electronics and rugged 18 gauge steel construction ensure long-term life safety reliability. Illumination is accomplished with up to three lamp heads mounted on the top of the unit. The most popular lamp head for use with the CCL/TCL Series is the “D” Series round sealed beam Par 36 tungsten lamp head. The “D” head is available up to 30 watts. CCL/TCL Series High Capacity Steel Emergency Lighting Units 6 and 12 Volt, 75 to 450 Watts Wet Cell Lead Calcium Battery Housing Constructed of 18 gauge steel with a tan epoxy powder coat finish. Knockouts provided for mounting up to three lamp heads. Bi-color LED charge monitor/indicator and a “press-to test” switch are located on the front of the cabinet. Choice of wedge base, sealed beam tungsten, or halogen lamp heads Electronics 120/277 VAC dual voltage input with surge-protected, solid-state circuitry provides for a reliable charging system. Charging system is complete with low voltage disconnect, AC lockout, brownout protection, AC indicator lamp and test switch. Includes two fused output circuits. Utilizes a fully automatic voltage regulated two-rate cur- rent limited solid-state charger -- initially provides a high rate charge upon restoration of AC power, and provides trickle charge t.
The CCL/TCL Series offers emergency lighting units built with 18‑gauge steel housing and a tan epoxy powder‑coat finish. Up to three lamp heads can be mounted, with the “D” Series round sealed‑beam Par 36 tungsten lamp head as the recommended option. Units are available in a range of wattages from 75 W to 450 W.
Electronics feature a dual‑voltage 120/277 VAC solid‑state charger with low‑voltage disconnect, brownout protection and AC lockout. A wet‑cell lead‑calcium battery provides 90 minutes of emergency power and operates from 65°F to 85°F. The units meet UL 924, NFPA 101, NEC and OSHA standards and include a three‑year electronics warranty plus a one‑year plus four‑year prorated battery warranty.
| Maximum wattage | 450 W |
|---|---|
| Input voltage | 120/277 VAC dual voltage |
| Battery type | Wet cell lead calcium |
| Battery operating temperature | 65°F to 85°F |
| Input power (120 VAC) | 0.66 A, 80 W |
| Input power (277 VAC) | 0.30 A, 80 W |
The units have a three‑year full electronics warranty and a one‑year full plus four‑year prorated battery warranty.
Up to three lamp heads can be mounted on the unit.
