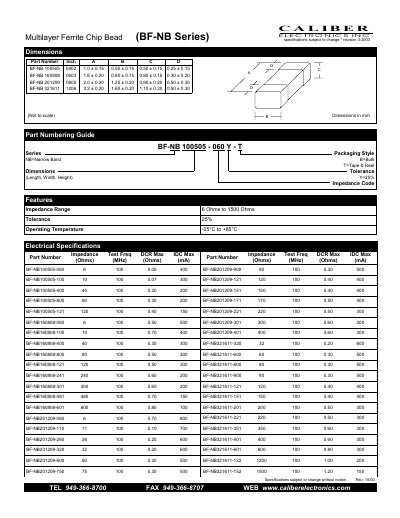

This datasheet provides the dimensions, impedance, test frequency, maximum DC resistance and maximum current information of BF-NB series multilayer inductors.
This datasheet provides detailed information on the Caliber Electronics BF-NB Series Multilayer Ferrite Chip Beads. It covers various packaging styles (Bulk, Tape & Reel) and package sizes ranging from 0402 to 1206.
The document lists specific part numbers with their corresponding impedance values tested at 100 MHz, maximum DC resistance (DCR), and maximum current handling capability (IDC). It also includes a guide for interpreting the part numbering system.
| Impedance Range | 6 Ohms to 1500 Ohms |
|---|---|
| Operating Temperature | -25°C to +85°C |
| Impedance Tolerance | 25% |
Available packaging styles include Bulk, Tape & Reel, and Narrow Band.
The impedance ranges from 6 Ohms to 1500 Ohms.
The beads operate from -25°C to +85°C.
