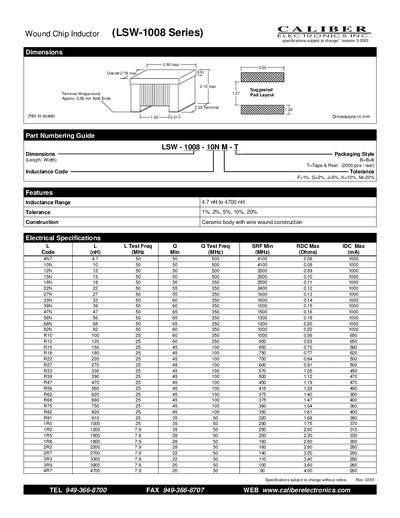

This document is a product manual for the LSW-1008 series inductors, which introduces the features and characteristics of the series, including inductance range, rated current, rated voltage, and package size.
The LSW-1008 series are ceramic‑body, wire‑wound chip inductors offered by Caliber. The sheet provides physical dimensions, packaging options, and a full range of electrical parameters for each inductance value.
Key data include an inductance range from 4.7 nH to 4700 nH, tolerance options from 1 % to 20 %, and detailed Q, SRF, RDC and IDC values for each part number. Packaging is available in bulk (B) or tape‑and‑reel (T) formats.
| Inductance range | 4.7 nH to 4700 nH |
|---|---|
| Tolerance options | 1%, 2%, 5%, 10%, 20% |
| Construction | Ceramic body with wire wound construction |
| Packaging style | Bulk (B) or Tape & Reel (T) |
| Maximum overall length | 2.92 mm |
The series covers inductance values from 4.7 nH up to 4700 nH.
Tolerance options are 1 %, 2 %, 5 %, 10 %, and 20 %.
They have a ceramic body with a wire‑wound construction.
They are offered in bulk (B) or tape‑and‑reel (T) formats, with 2000 pieces per reel for the tape option.
