TA1S (SMD) and TB1S (Thru Hole) series SineWave (VC) TCXO oscillators provide ±3ppm frequency stability, operating frequency range of 9.600MHz to 35.000MHz.

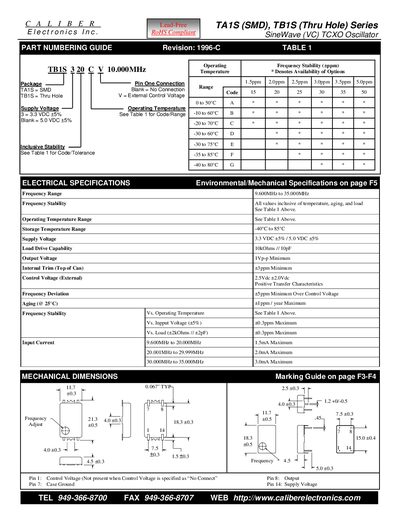

The Caliber TA1S (SMD) and TB1S (Thru Hole) series part numbering guide details the VC TCXO oscillator family, providing part codes, mechanical dimensions, and option availability.
Key specifications include a frequency range of 9.6 MHz to 35 MHz, stability from 1.5 ppm to 5 ppm, supply options of 3.3 VDC (±45 %) or 5.0 VDC (±5 %), and a storage temperature range of –40 °C to 85 °C.
| Frequency Range | 9.600 MHz to 35.000 MHz |
|---|---|
| Frequency Stability | 1.5 ppm to 5.0 ppm (depending on option code) |
| Supply Voltage | 3.3 VDC ±45 % / 5.0 VDC ±5 % |
| Load Drive Capability | 10 kΩ // 10 pF |
| Output Voltage | 1 Vpp minimum |
| Internal Trim | +3 ppm minimum |
| Control Voltage (External) | 2.5 Vde / 2.0 Vde |
| Aging | +1 ppm per year maximum (at 25 °C) |
| Storage Temperature Range | -40 °C to 85 °C |
| Input Current | 1.5 mA to 3.0 mA maximum (frequency dependent) |
The series covers 9.600 MHz to 35.000 MHz.
They operate from 3.3 VDC (±45 %) or 5.0 VDC (±5 %).
Stability ranges from 1.5 ppm to 5.0 ppm depending on the option code.
The devices can be stored from –40 °C to 85 °C.
