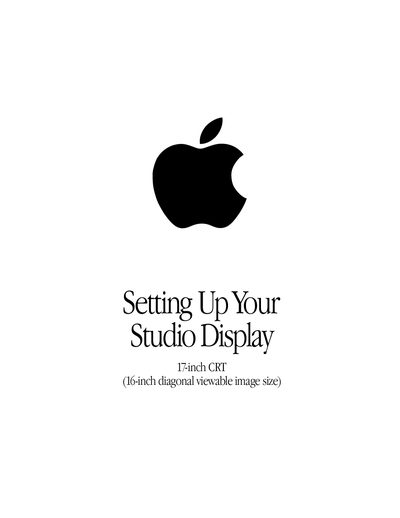

apple Setting Up Your Studio Display 17-inch CRT (16-inch diagonal viewable image size) USER'S MANUAL

About this manual

This document is a user guide for the Apple Studio Display 17-inch CRT (16-inch diagonal viewable image size). It covers unpacking considerations, such as ensuring the desk supports the display's weight of 48 pounds. The guide details how to determine if your computer requires a graphics card, specifying that the monitor works with video circuitry operating within horizontal scan rates of 30-85 kilohertz and vertical refresh rates of 48-160 hertz.

What's inside

• Communications Regulation Information
• Your Display at a Glance
• Setting Up
• Getting Ready to Set Up
• Connecting the Display to Your Computer
• Turning the Display On
• Installing the Apple Displays Software
• Using Manual Controls and the On-Screen Display
• Safety Instructions
• Troubleshooting

Specifications

Frequently asked questions

Do I need a graphics card to use this monitor?

The monitor works with any Mac OS-based PowerPC computer except the PowerBook Duo 2300, or you may need a compatible graphics card.

How much weight can the desk or table support for this display?

The desk or table must be able to support a weight of 48 pounds (21.8 kg).

What is the required clearance in the back when placing the monitor?

You must allow at least 6 inches (15 cm) of clearance in the back.

What are the supported horizontal scan rate and vertical refresh rate ranges?

The monitor works with video circuitry operating within a horizontal scan rate of 30-85 kilohertz and a vertical refresh rate of 48-160 hertz.
