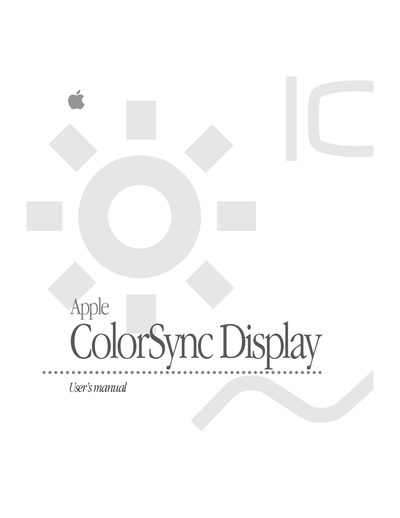

Apple ColorSync Display User Manual

About this manual

This manual provides instructions for setting up the Apple ColorSync Display monitor. It covers safety precautions, physical positioning, connecting power and video cables to both Mac OS-based and Windows-based computers, and turning the device on.

The guide details how to use the Monitors & Sound control panel in Mac OS and the onscreen controls for adjusting geometry, color temperature, convergence, and scan rates. It also explains the ColorSync software features for managing color profiles.

What's inside

• Setting Up Your Monitor
• Important safety and cleaning instructions
• Getting ready to set up your ColorSync Display
• Connecting the monitor to your computer
• Using the monitor with Windows-based computers
• Installing and Using Apple Displays Software
• Adjusting screen geometry
• Adjusting color settings and other features
• Tips and Troubleshooting

Specifications

Frequently asked questions

Do I need to install a video card?

The manual includes a specific section titled "Do you need to install a video card?" which addresses compatibility for both Mac OS-based and Windows-based computers.

What are the two model sizes available for this monitor?

The manual provides communications regulation information and specifications for a 17-inch (16.1-inch VIS) model and a 20-inch (19-inch VIS) model.

What type of video connector is used on the display cable?

The display cable uses a 15-pin miniature D-type connector.

Which pin on the VGA adapter carries the Red video signal?

Pin 1 on the Standard 15-pin VGA connector is designated for the Red video signal.
