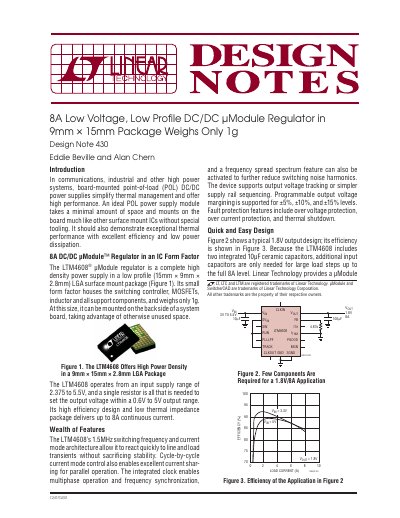

LINEAR dn430f handbook

The LTM4608 is a high-density power supply module with a small form factor, lightweight design, high efficiency, and low power dissipation.

Brand: Linear Technology
Category: DC/DC Converters
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 91 KB
Published: 05 June, 2012
Updated: 28 September, 2023
MD5 checksum: 07A9D16AD1B40A5FA5C05BF00FB26A64
PDF: LINEAR dn430f handbook PDF

About this manual

The LTM4608 is an 8A low voltage, low profile DC/DC µModule regulator designed for communications and industrial systems. It integrates the switching controller, MOSFETs, inductor, and support components into a single 9mm x 15mm x 2.8mm LGA package weighing only 1g.

What's inside

Introduction
Wealth of Features
Quick and Easy Design
Thermally Enhanced Packaging
Output Voltage Tracking
Current Sharing
Fault Conditions

Specifications

Continuous Current	8A
Weight	1g
Input Voltage Range	2.375V to 5.5V
Output Voltage Range	0.6V to 5V
Switching Frequency	1.5MHz

Frequently asked questions

What is the maximum output current?

The device delivers up to 8A continuous current.

Can multiple units be paralleled?

Yes, two or more LTM4608 regulators can be paralleled to provide multiples of 8A.

What is the thermal shutdown temperature?

The device inhibits switching operation above 150°C.
