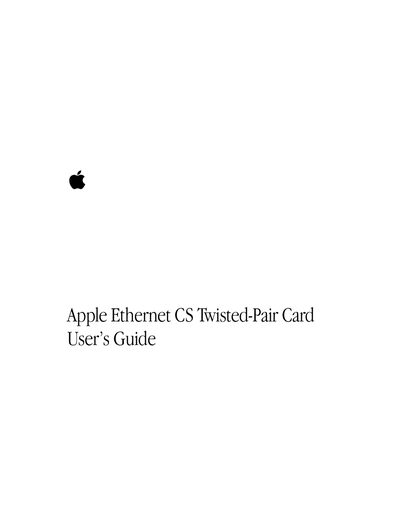

This user manual introduces the function and use of Apple Ethernet CS Twisted-Pair Card
The Apple Ethernet CS Twisted-Pair Card is designed to expand communications capabilities for Macintosh models with a communications slot (CS). It supports IEEE 10BASE-T standard twisted-pair cable networks and requires the installation of EtherTalk software. The card features an RJ-45 port and includes a green LED indicator on most versions to show network connection status.
The manual details the physical installation process, including handling antistatic precautions and securing the card in the slot. It also covers software setup using the Network Software Installer disk (version 1.4.2 or later) and configuring the Network control panel for EtherTalk.
| Data rate | 10 megabits-per-second maximum |
|---|---|
| Connector type | Ethernet 10BASE-T-compliant RJ-45 port |
| Recommended cable length | 100 meters from card to hub, maximum |
| Power dissipation | Less than 1.5 watts, with an average of 1 watt |
| Operating temperature | 50° to 104° F (10° to 40° C) |
| Ethernet controller | National Semiconductor DP83934 (SONIC-T) |
The Apple Ethernet CS Twisted-Pair Card works only with Macintosh System 7 or later.
No, you will need to obtain twisted-pair network cable separately.
You must install EtherTalk software using the Network Software Installer disk, version 1.4.2 or later.
