Apple Power Macintosh 4400/7300 Series PC Compatibility Card User Manual

About this manual

This document serves as a user guide for the Apple Power Macintosh 4400 and 7300 series PC Compatibility Card. It details how to connect monitors using the provided loopback cable, including specific steps for single-monitor setups, dual-monitor configurations, and specialized connections for AudioVision or AppleVision monitors. The text includes warnings regarding port usage to prevent equipment damage.

What's inside

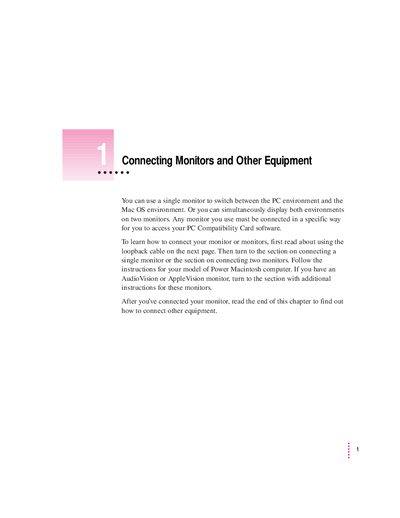

• Connecting Monitors and Other Equipment
• Using the loopback cable
• Connecting a single monitor
• Connecting two monitors
• Connecting an AudioVision monitor
• Connecting an AppleVision monitor
• Getting started with Windows 95

Frequently asked questions

How do I connect a single monitor to the PC Compatibility Card?

Plug the middle connector into the card port, the long connector into the built-in monitor port or video card, and the short connector into your monitor's cable.

What happens if I connect two monitors?

One monitor displays the Mac OS environment while the other displays the PC environment.

Can I use a multiple-scan monitor from another manufacturer?

Yes, but you must also use a VGA-to-Macintosh adapter to display the PC environment.
